Controllers

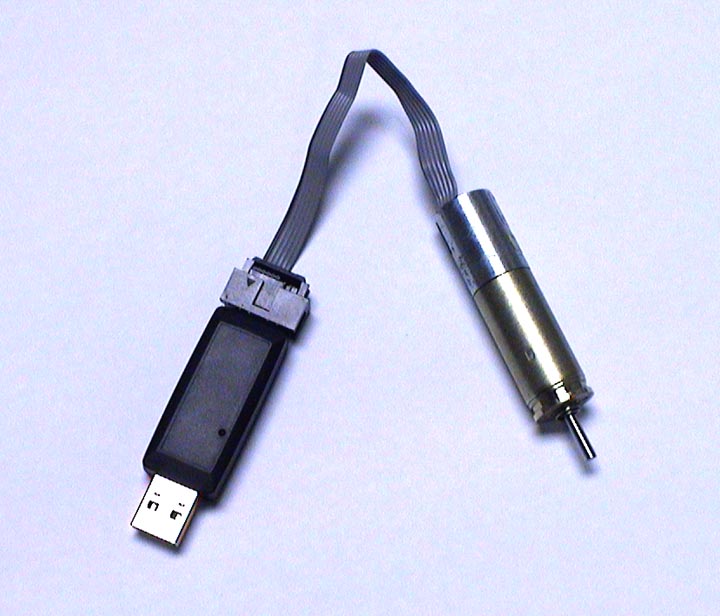

USS-210 USB Stick Stepper Controller and motor driver
Miniature USB Stick Stepper Controller and motor driver for 1 axis

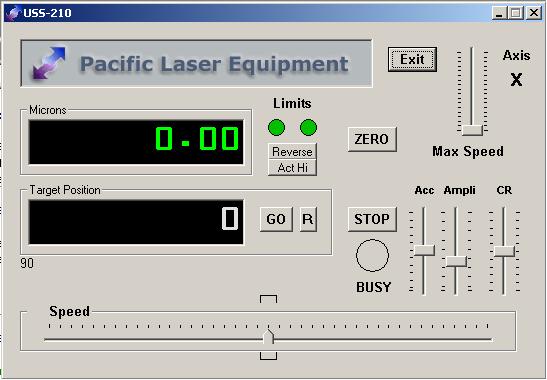

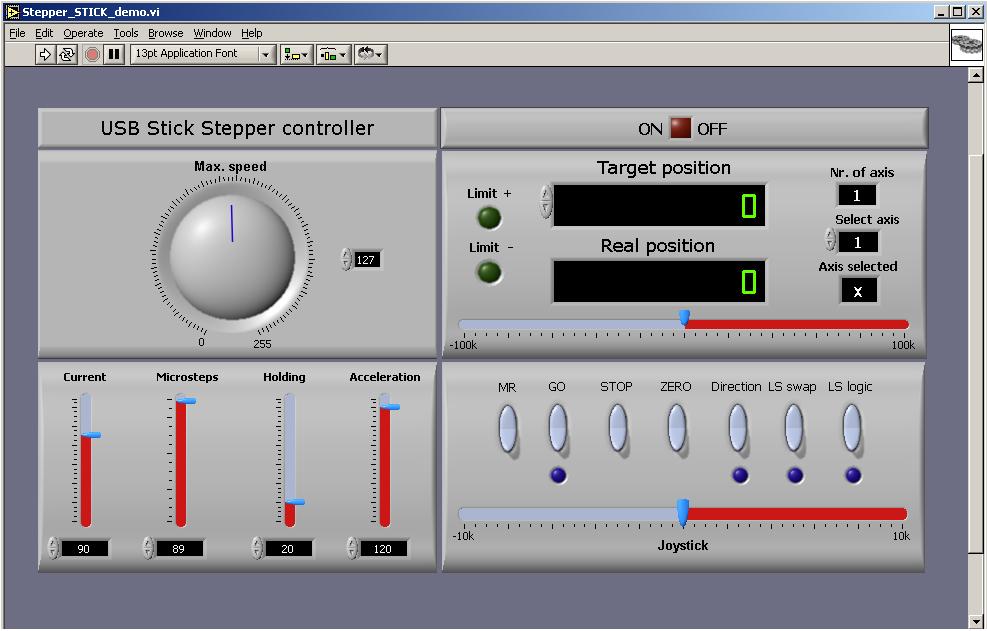

Controls 1 miniature stepper motor No external power needed Can operate in micro stepping mode 1/90 No programming necessary. Visual Basic and LabView drivers. Ideal for motorizing manual Opto-Mechanics Recommended motors: 3- 6-12V, 200mA/phase Compatible Linear stage: LDC-10, LDC-25 etc... Compatible Rotational Stage: PRS-55
USS-210 USB Stick Stepper Controller and motor driver
| Parameter Identifier | Value / Metric | Unit of Measure |
|---|---|---|
| mass | 50 grams | grams |
| dimensions | 1.5" x 0.5" x 0.25" | --- |
Technical Support
Need custom configurations or architectural help? Our engineers are ready.
