Rotational stages
RDC-101E

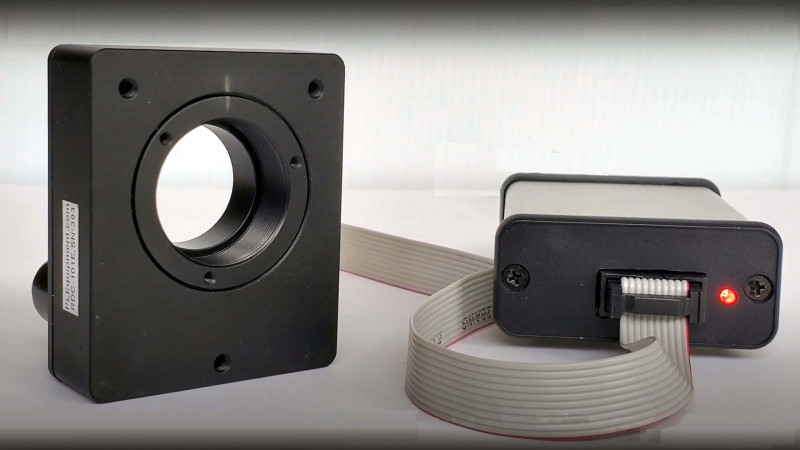

RDC-101E
- Ultrafast wave plate rotator
- 1" clear aperture.
- 360deg continuous rotation
- 3240 steps per rotation
- Up to 11,000 deg/sec (30 rot/sec)
- DC motor driven with optical ecoder in closed loop.
- Optics is held with a ring with thread 1.035-40
- Optics thickness up to 7mm
- Reference Hall effect switch
- Encoder feedback from the moving platform
Similar products Related products
RSC-116E
Technical Documentation
Technical Support
Need custom configurations or architectural help? Our engineers are ready.
Inquire Now →Related Equipment
View Full Catalog →
PRG-200 Tilt actuator and/or motorized Flipping mirror
Tilt actuator. Miniature self-contained powered directly from the controller.
Rotational stages
Spec Reference →

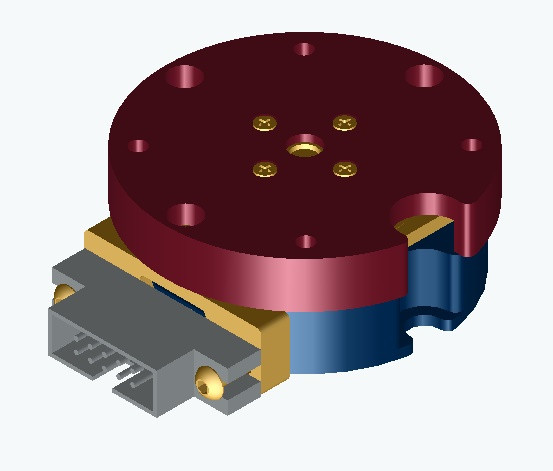

PRS-55A
Miniature rotational stage
Rotational stages
Spec Reference →
RSC-101A
RSC-101A
Rotational stages
Spec Reference →

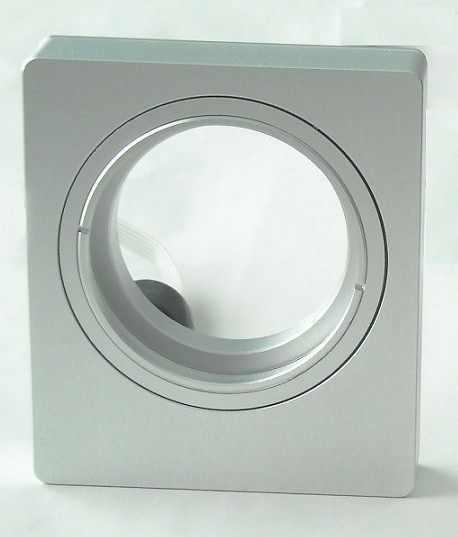

RSC-201A
