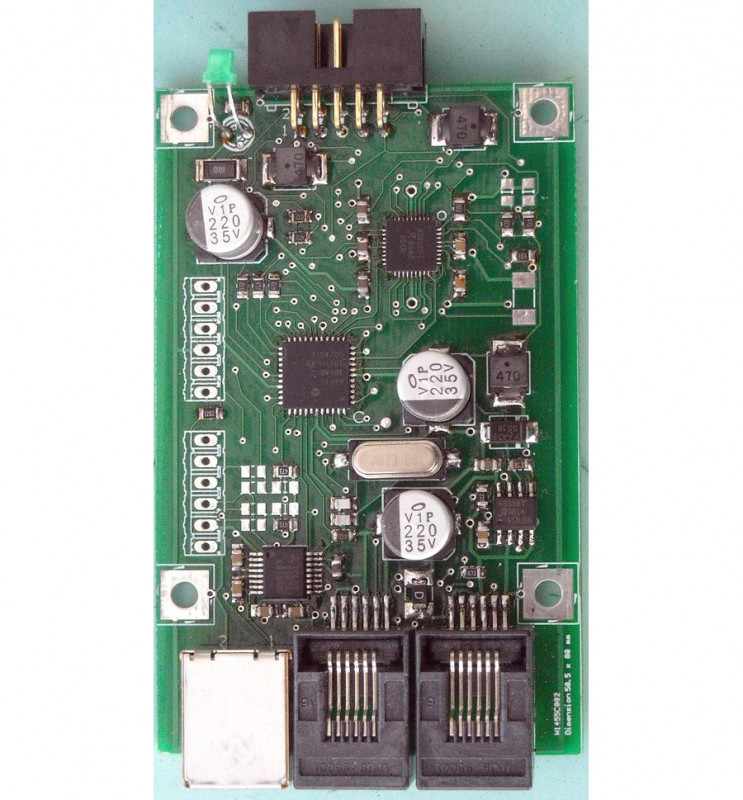

SSP-21 Motor Controller RoHs

Available In Stock

Miniature 2 Phase Stepper Servo controller and driver

Special motorized and electronics

Mass:  150 grams
Dimensions:  2 x 3 inch
DATASHEET FirstOperation.pdf

Images


Description

One axis miniature Stepper Motor Controller and driver.
User selectable micro-stepping up to 256.
The PC Interface can be RS232 or USB.
Up to 8 boards may share same PC host interface.
Two chanells general purpose 10-bit A/D input port for reading 0 to 5V.
Home reference switch with indexing for repeatable positioning.
Programable end of travel limit switches.
Digital and Analog I/Os.
No programming needed.
DEMO software and LabView drivers.

Files

File NameSize
FirstOperation.pdf107.43KB
LabView_32bit_DEMO.zip173.75KB
QuickStart.pdf440.69KB
SSP-21DSa.pdf456.07KB
USB_DRIVER_WIN.zip3.71MB
