HVM 60-12-HSM Elevator stages

Pacific Laser Equipment HVM 60-12-HSM

Motorized elevator stage

- 12 mm travel - 2-phase step motor - Hall-effect limit switches - Only 42mm tall when retracted

LST-10 Subminiature Linear stage Linear stages

Pacific Laser Equipment LST-10 Subminiature Linear stage

Stepper Servo driven in closed loop

Max. travel range: 10mm Encoder feedback: Rotary (absolute option) Design resolution: 0.2'm Bidirectional backlash: 0.2'm Limit switches: Yes (optional at one end of trael) Index reference: Yes (non contact) Repeatability: 0.3'm Stepper drive: continuous wave Voltage range: 6-30V Max. normal load: 1lb Max. pushing load: 0.3lb Recommended controller: SSP-21

DSP-21JS 2axis Joystick Controllers

Pacific Laser Equipment DSP-21JS 2axis Joystick

Joystick controller with Digital Display for 2 axis mechanics

<div>- Adjust velocity by tilting the stick- Simultaneous control for 2 axis in XY configuration- Programmable parameters- No Power Supply needed to operate- Press down to RESET display to "0"- Use with DSP-21 controller only- Connecting cable included</div>

06VTS-30 Elevator stages

Pacific Laser Equipment 06VTS-30

Manual elevator stage

Compact design, manual elevator stage with +30 mm travel. The movement is Micrometer driven with 0.01mm resolution. All aluminum parts have a black anodized protective coating. Metric versions available.

DCS39-1004 Servo motor Motors

Pacific Laser Equipment DCS39-1004 Servo motor

DC motor + Encoder + Planetary Gearhead. Specify size, gear ration and options.

Voltage ranges: 12V, 24V Available gear ratios: 8.75 :1, 34.165:1, 63.75:1, 137.2:1, 269:1, 300:1 Incremental encoder: Ch A + Ch B Absolute encoder: 10bit (PWM) Compatible controller: DSP-21

SSP-51 Stepper Motor Controller medium size Controllers

Pacific Laser Equipment SSP-51 Stepper Motor Controller medium size

Stepper Motor Controller. USB, networkable and wireless available.

Stepper Motor Controller for one bipolar stepper motor replaces any controller. Encoder feedback option available with absolute position. The PC Interface can be RS232, RS485, USB, Ethernet or wireless. Up to 99 boards may share same PC host interface. 2 ch general purpose 10-bit A/D input port for reading 0 to 5V. Home reference switch with indexing for repeatable positioning. End of travel switches. Full, 1/2, 1/4, 1/8 and 1/16 or wave step modes up to 72,000 microsteps per 360 degrees. Simple Terminal type programming. DEMO program. LabView drivers. Recommended mechanics: stages and actuators.

SM-12B Motors

Pacific Laser Equipment SM-12B

Miniature Stepper Motor.

<div>Great for miniature precision control Step angle: 1.8 degrees No. of phases: 2 Drive System: Bipolar Nominal Voltage: 12VDC Phase Current: 200mA Phase Inductance: 8mH Holding Torque: ~ 2Ncm Mounting hole space diagonal: 22.5mm Phase Resistance: 25Ohm Shaft diameter: 4mm Shaft length: 18mm Motor Diameter: 20mm Motor Length: 29mm</div>

UPE-1004 Encoders and sensors

Pacific Laser Equipment UPE-1004

USB interface with Non-contact encoder

Non-contact miniature encoder with USB interface - 1024 encoder counts per revolution - No power Supply - LabView driver - Visual Basic DEMO program and source code Works also with Faulhaber, MicroMo and MAXON encoders Ideal for monitoring rotation shafts where mechanical interfacing is difficult.

PLB-100 linear actuator. 100mm Delay line. Actuators

Pacific Laser Equipment PLB-100 linear actuator. 100mm Delay line.

Linear actuator. Miniature self-contained. Can also be powered from the USB controller.

Total travel range: 100mm Built-in resistive absolute encoder. Power requirements: 9VDC to 12VDC. Max. pushing force: 0.05lb Velocity control: 1mm/s to 600mm/s Straightness and flatness: Not specified. Mechanical resolution: Not specified. Minimum increment: ~ 1.5mm Linearity: Not specified. Recommended controller: UDA-210 Optics not included.

USS-210 USB Stick Stepper Controller and motor driver Controllers

Pacific Laser Equipment USS-210 USB Stick Stepper Controller and motor driver

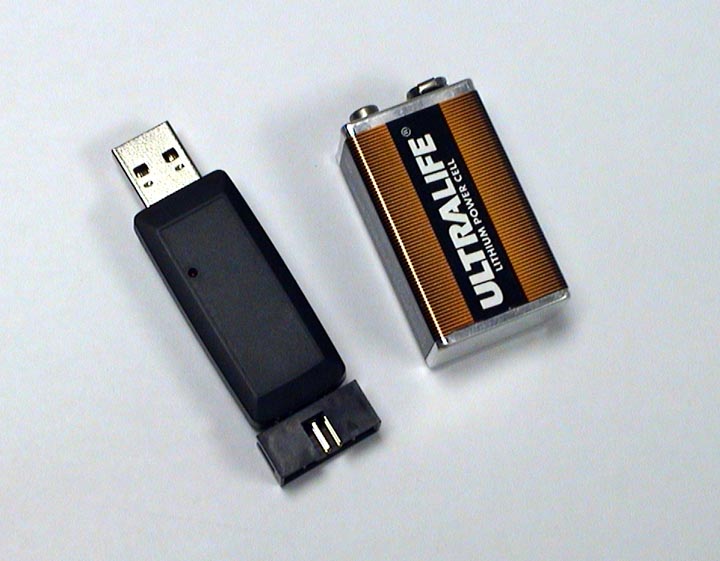

Miniature USB Stick Stepper Controller and motor driver for 1 axis

Controls 1 miniature stepper motor No external power needed Can operate in micro stepping mode 1/90 No programming necessary. Visual Basic and LabView drivers. Ideal for motorizing manual Opto-Mechanics Recommended motors: 3- 6-12V, 200mA/phase Compatible Linear stage: LDC-10, LDC-25 etc... Compatible Rotational Stage: PRS-55

LDC-50 Linear stage, XY stage and XYZ stage Linear stages

Pacific Laser Equipment LDC-50 Linear stage, XY stage and XYZ stage

DC Servo or Stepper motorized stage. Compatible with the SuprMotrV? controller.

Travel range: 50, 100, 150, 200, 300, 500mm Encoder feedback: Rotary incremental Design resolution: 0.05?m Limit switches: Yes Guiding: Recirculating ball bearings. Voltage range: 0 to 24V Max. normal load: 40lb Max. pushing load: 2lb (vertical orientation) Recommended controller: DSP-21?.

USD-210 USB Stick Servo Controller and motor driver Controllers

Pacific Laser Equipment USD-210 USB Stick Servo Controller and motor driver

Miniature USB Stick DC Servo Controller and motor driver for 1 axis

Controls and drives 1 miniature DC Servo motors. No external power needed. Up to 4 axis can be controlled from the same PC. Works with 6-12V DC Faulhaber, MicroMo and MAXON motors No Command List needed. Available only as an option. Visual Basic and LabView drivers available. DEMO program available Recommended motors are DCG-1216 and DCS16-1004 Ideal for motorizing manual Opto-Mechanics
